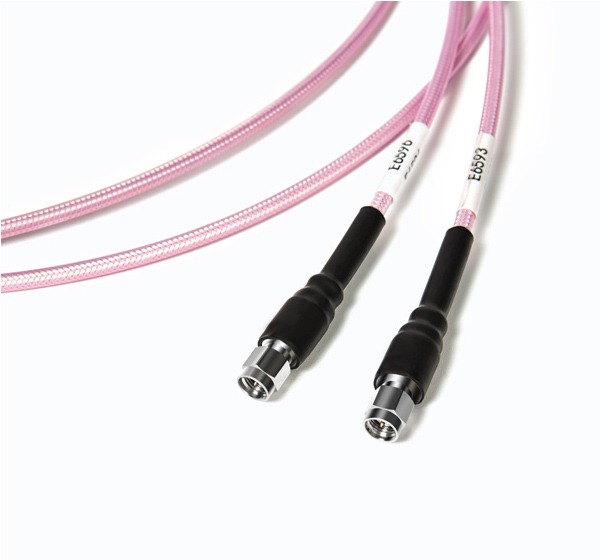

Microwave interconnects for air and ground military and commercial telecom applications
Impedance: 50±2 ohm
VSWR:(Max. DC to 18GHz): 1:1.35
Velocity of Propagation: 80% nom.
Temperature: -55°C to +200°C

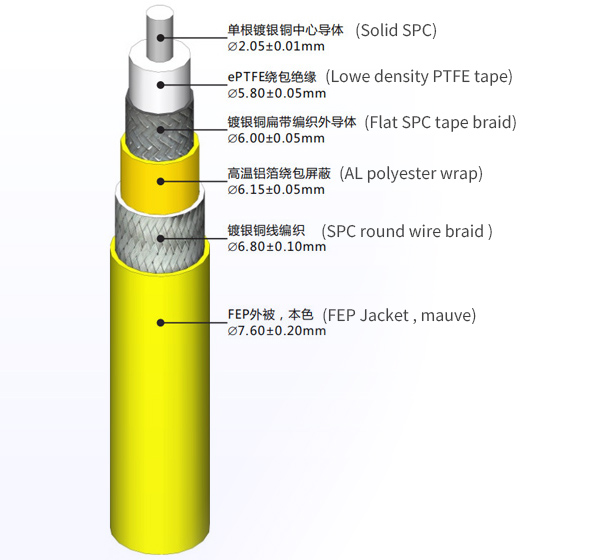

| Item | Specification |
| Impedance | 50±2 Ω |
| Delay | 4.1 ns/m |
| Capacitance | 81 pF/m |
| Velocity of propagation | 80% nom |

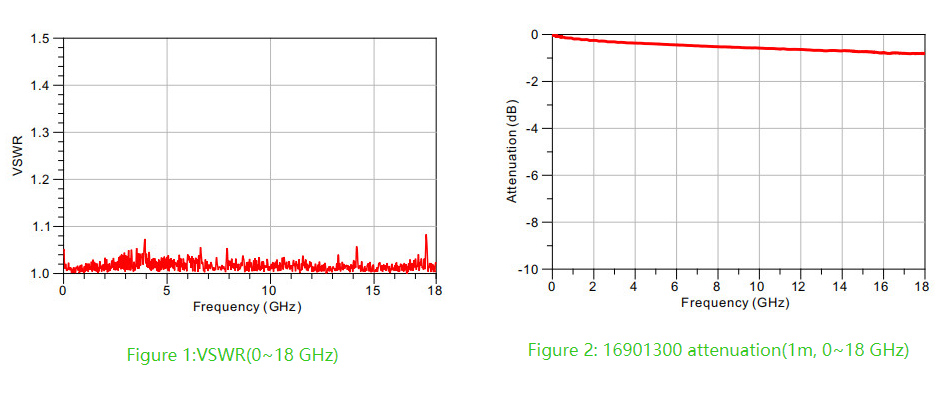

| Max. VSWR (DC~1 8 GHz) | 1:1.35 (Figure 1) |
| Shielding effectiveness | > 90 dB @ 18 GHz |
| Typical Attenuation (Figure 2) | |
| 1GHz | 0.18dB/m |
| 2GHz | 0.26 dB/m |
| 3GHz | 0.30 dB/m |
| 4GHz | 0.36 dB/m |
| 6GHz | 0.45 dB/m |
| 8GHz | 0.52 dB/m |
| 10GHz | 0.58 dB/m |
| 12GHz | 0.64 dB/m |
| 18GHz | 0.81 dB/m |
| Item | Specification |
| Max. Weight | 118 g/m nom |
| Min. Bend radius | 50.8 mm |
| Operating temperature | -55℃ ~ 200℃ |
